20mm 5x100 to 5x114.3 Wheel Adapters

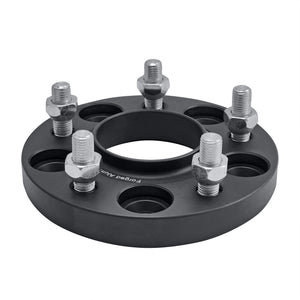

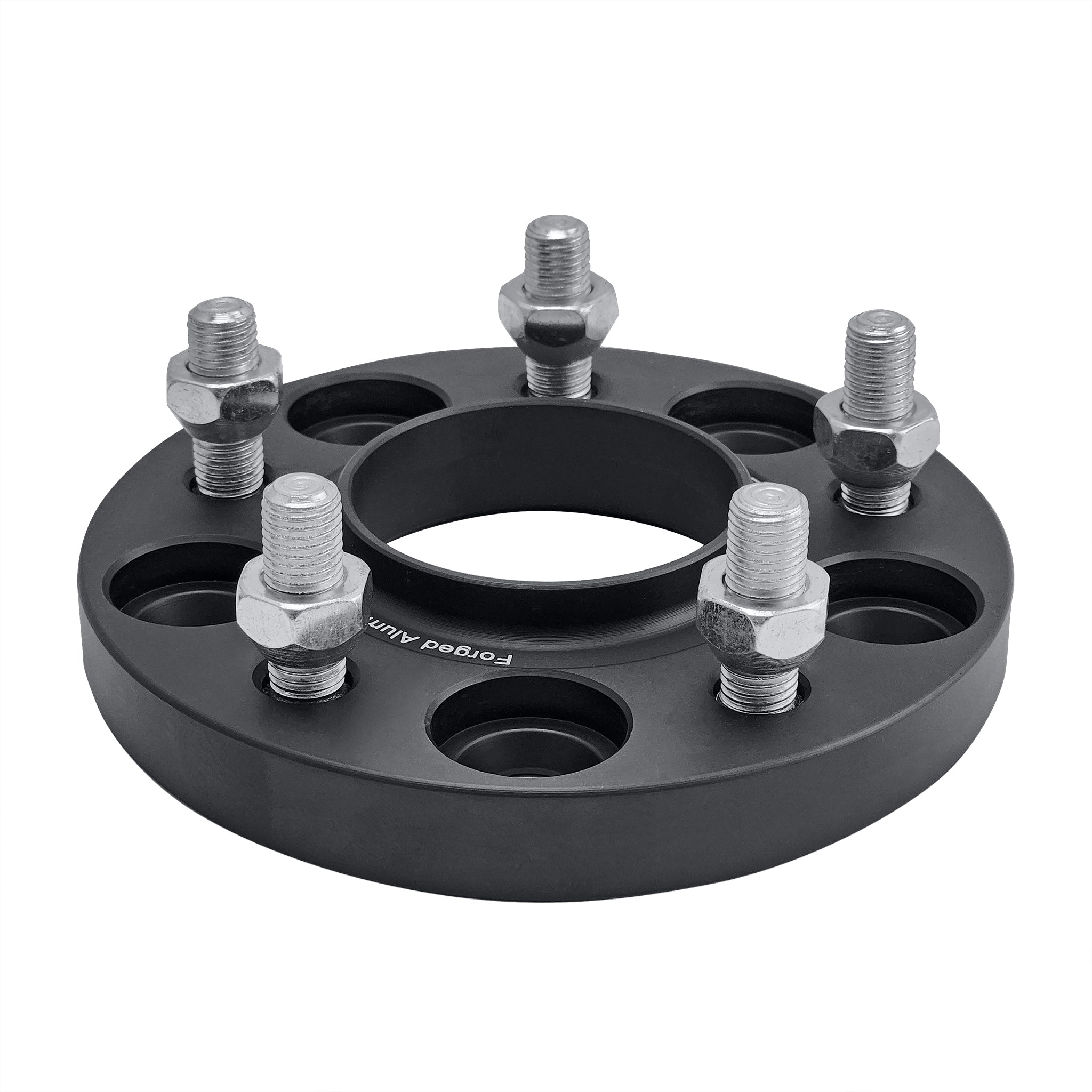

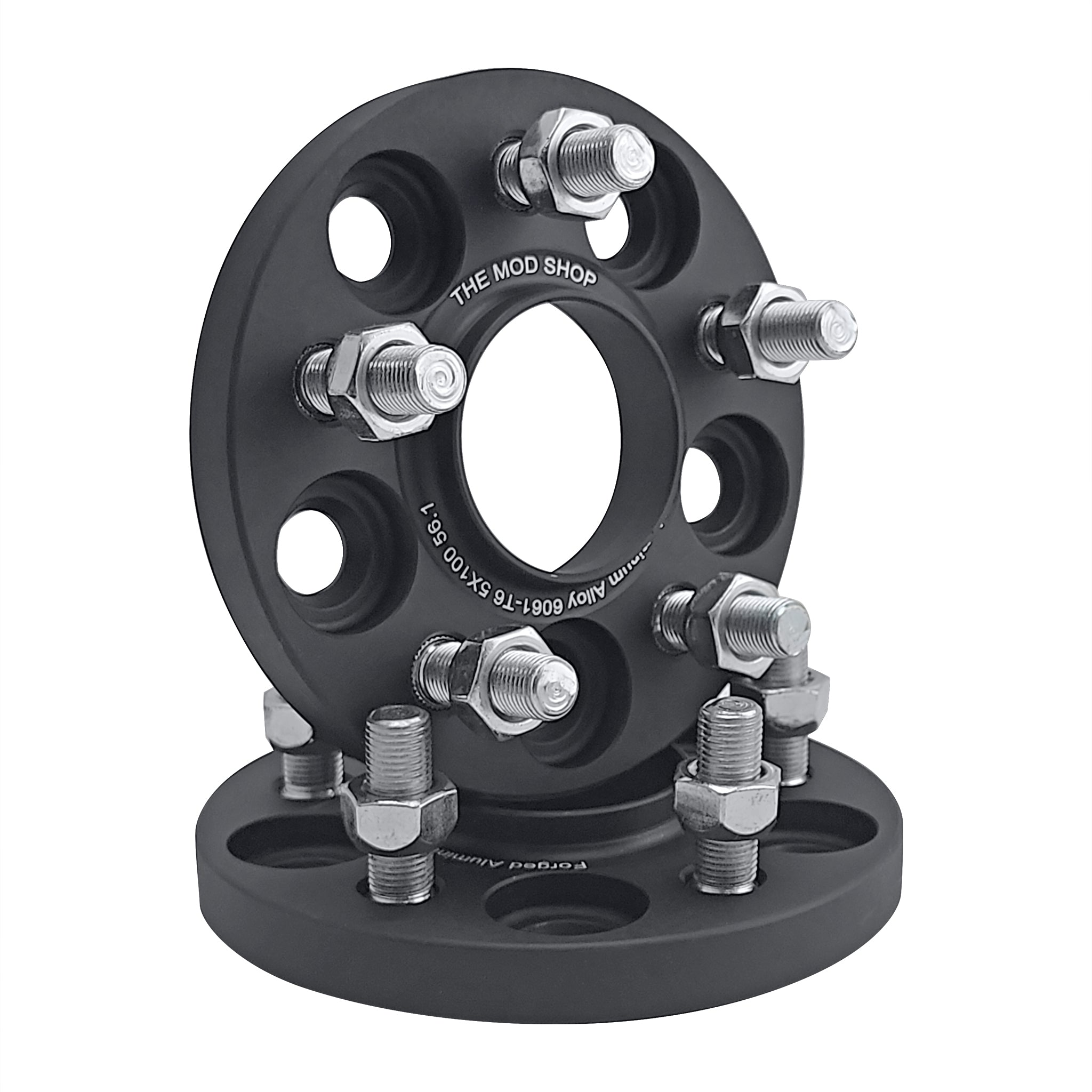

20mm 5x100 to 5x114.3 bolt-on wheel adapters for stud pattern conversion. This bolt-on application allows fitment of a wider range of aftermarket alloy wheels that share the popular 5x114.3 stud pattern configuration.
Each adapter is CNC-machined from high-strength billet 6061-T6 aluminium alloy, with a hub-centric 56.1mm centre bore to ensure stability and vibration-free performance.
These wheel spacer adapters are ideal for improving stance, correcting offset, and enhancing wheel clearance.
Vehicle Compatibility:
-
Subaru Impreza (GC/GD): 1993–2007
-
Subaru WRX (Pre-2005): 1992–2005
-
Subaru Forester SF/SG: 1997–2008
-
Subaru Legacy/Outback: 1989–1999
-
Subaru Liberty (AU): 1989–1999
-
Subaru XV (early models): 2012–2017
-
Toyota 86 / GT86 / GR86: 2012–present
-
Scion FR-S: 2012–2016
-
Subaru BRZ: 2012–present
Features:
· Converts 5x100 PCD to 5x114.3
· Hub-centric design (56.1mm bore) for precise wheel alignment
· CNC-machined from billet 6061-T6 aluminium alloy

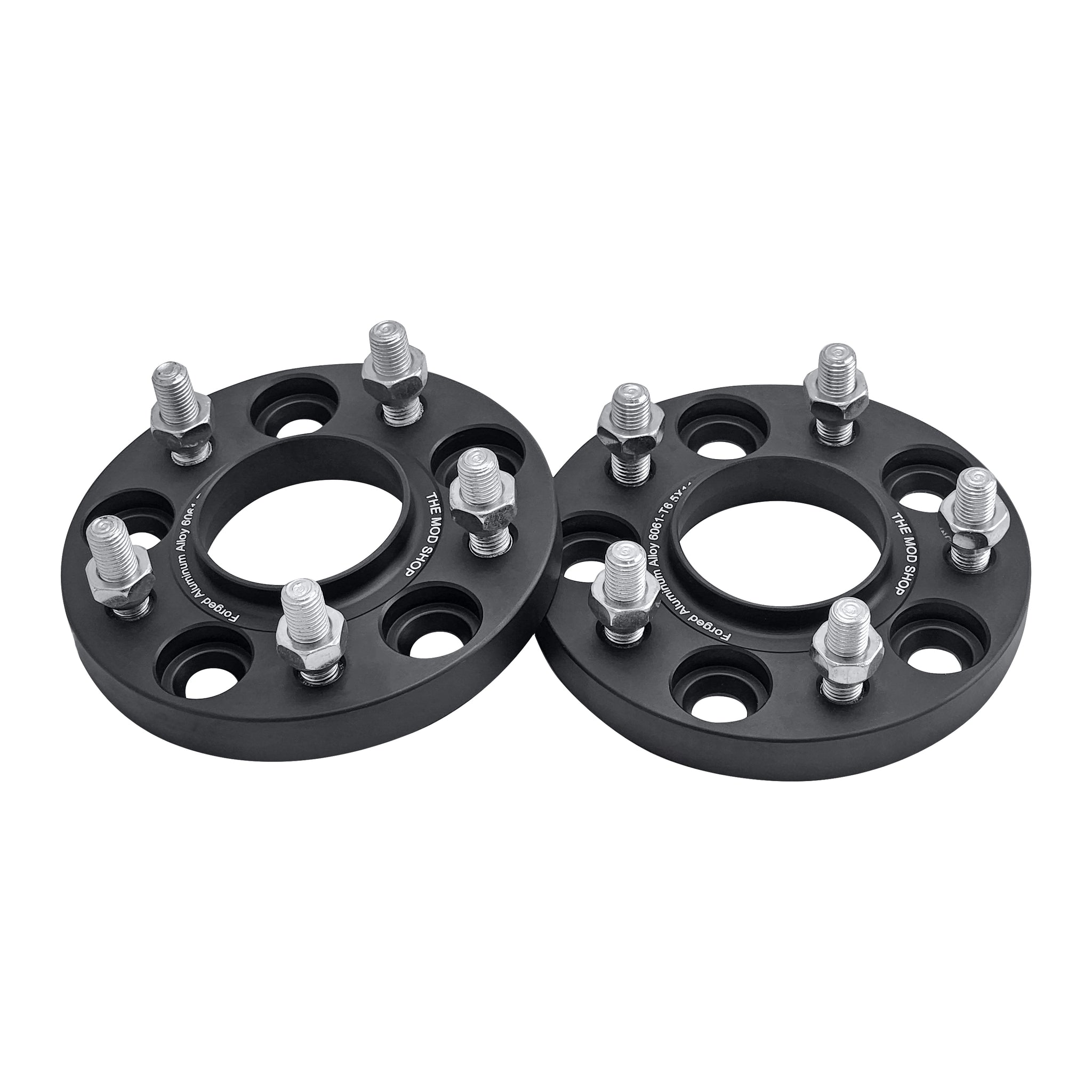

· Sold as a pair (2 adapters)

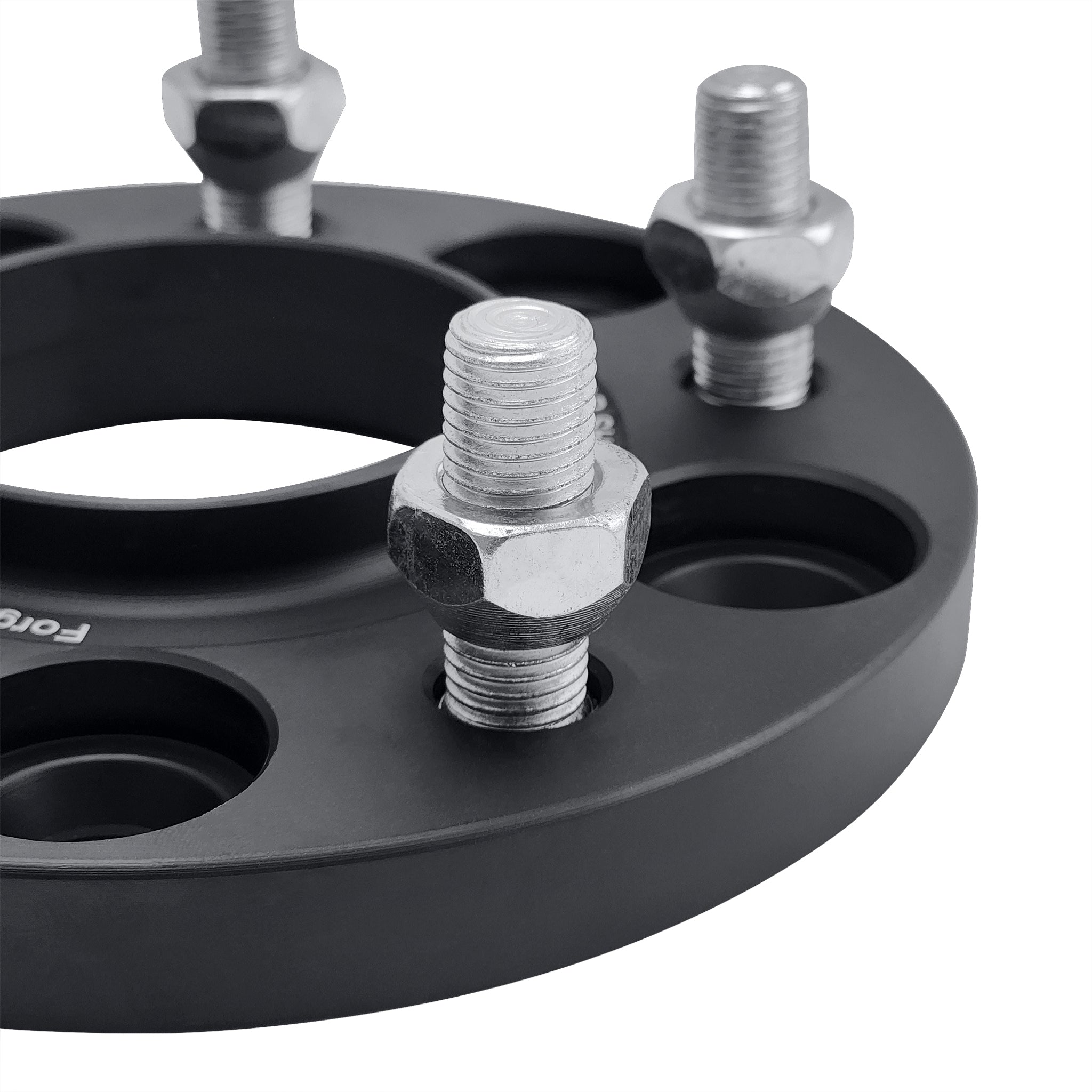

· Pre-installed high-strength studs and open nuts
· Ideal for fitting aftermarket wheels with different offsets
Specifications:
· Material: 6061 T6 Aluminium Alloy
· P.C.D./Vehicle Bolt Pattern: 5x100 to 5x114.3
· Thickness: 20 mm
· Hub: 5H
· ID/Centre Bore: 56.1
· OD: 56.1
· Wheel Stud Size: M12x1.25
· Finish: Black
· Quantity: Pair (2 Pieces)
What’s Included:
· 2x 20mm Wheel Adapters (Pair)
· Pre-installed studs
· Open nuts for hub-side mounting
Disclaimer:
If you are unsure or have any queries, you can contact us or refer to our wheel fitment guide. The information provided serves as a general guide. Images used are for reference only and is affected by the selected size. You should verify your wheel size, stud pattern (p.c.d.), wheel nut thread pitch, and/or centre bore of your specific vehicle, as it may differ within vehicle makes. All wheels and wheel accessories should be installed professionally by qualified individual or shop for safe vehicle operation.
