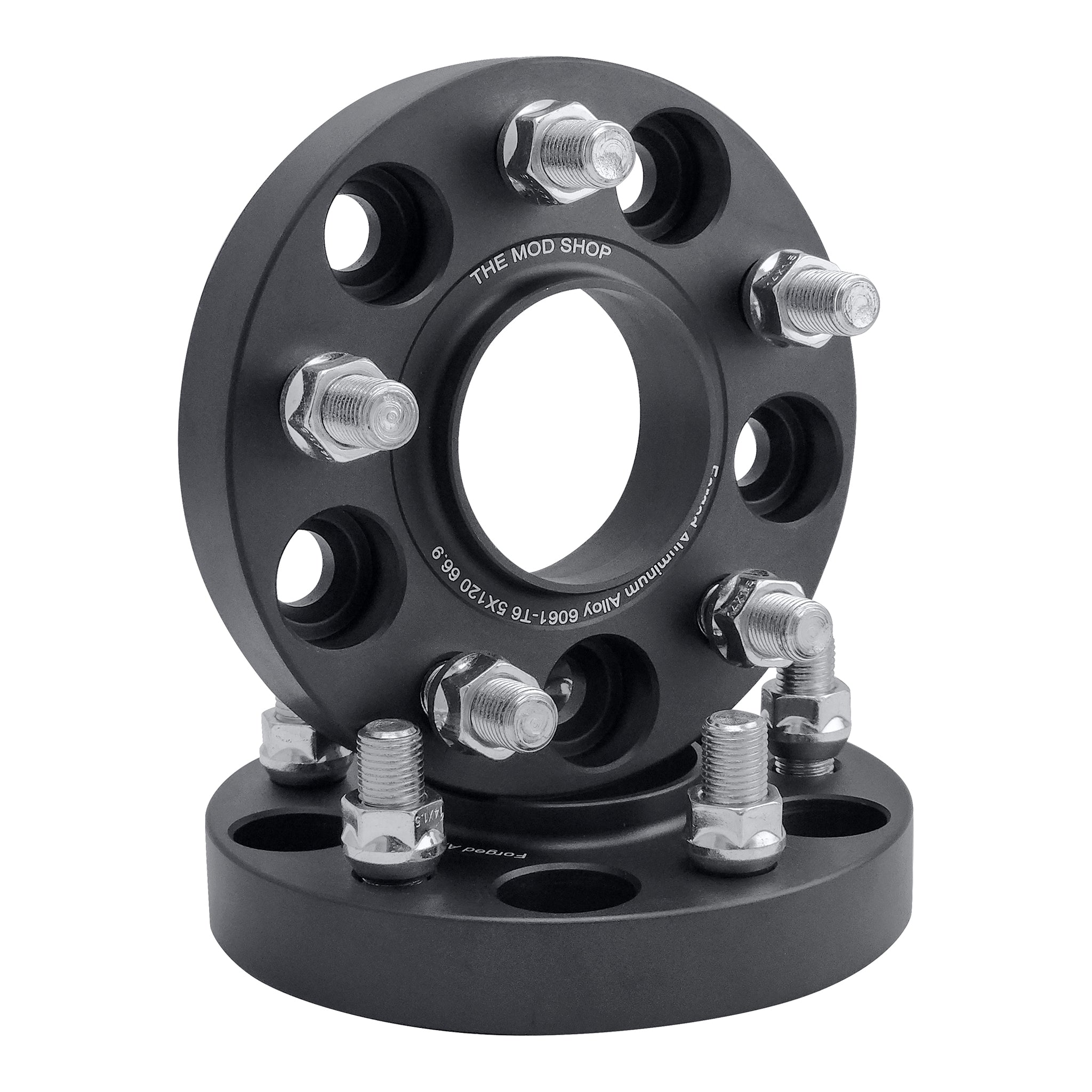

Holden Bolt-on 25mm alloy wheel spacers for
CNC machined from high grade 6061 T6 aluminium alloy and finished in smooth anodized black, these wheel spacers feature a hub-centric fit to mount securely to your wheel hub. This kit includes 2 wheel spacers and 10 locking nuts.
Assist with wheel to fender gaps, suspension, and/or big brake clearance
Often used to minimize wheel to fender gaps or ensure wheels do not foul on brakes or suspension parts, this bolt-on application will increase your overall track width by 25 mm on each side.
Available in pairs (2). Please select the required size and quantity. If you require 4 spacers, please update quantity to 2 Pairs (4 pieces).
Specifications:
Material: 6061 T6 Aluminium Alloy
P.C.D./Vehicle Bolt Pattern: 5X120
Thickness: 25 mm (Millimetres)
Hub: 5H
ID/Centre Bore: 69.6 - Pre 2006 | 66.9 - VE & VF 2006 and onwards
OD: 69.6
Wheel Stud Thread Size & Thread Pitch: M12X1.5 - Pre 2006 | M14X1.5 - VE & VF 2006 and onwards

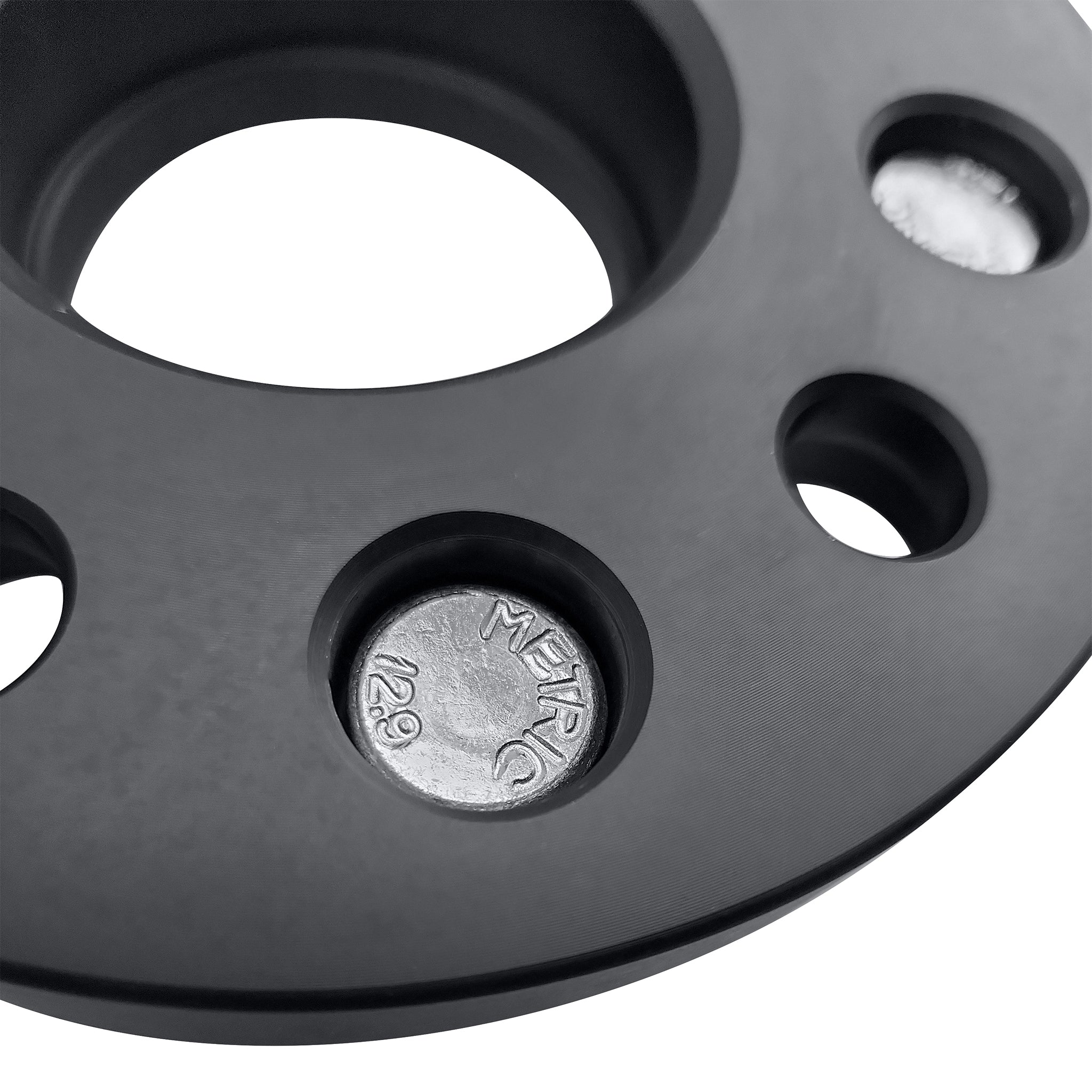

Wheel Stud Grade: 12.9
Finish: Anodized Black
Quantity: 2 (Pair)
Common Vehicle P.C.D. & Centre Bore:
CHEVROLET CAMARO | 5X120 - 67.1 -M14X1.5
HOLDEN COMMORDORE (Pre 2006) | 5X120 - 69.6 - M12X1.5
HOLDEN COMMODORE (VE & VF 2006 and onwards) | 5X120 - 66.9 - M14X1.5
If you are unsure or have any queries, you can contact us or refer to our wheel fitment guide. The information provided serves as a general guide. Images used are for reference only and is affected by the selected size. You should verify your wheel size, stud pattern (p.c.d.), wheel nut thread pitch, and/or centre bore of your specific vehicle, as it may differ within vehicle makes. All wheels and wheel accessories should be installed professionally by qualified individual or shop for safe vehicle operation.
