Short Head Steel Wheel Bolt

These high-tensile strength steel bolts provide a secure connection between the wheel spacer and the wheel hub, ensuring safety and performance.

Featuring a shorter hex head, these bolts prevent clearance issues on the back of the wheel, making them ideal for applications where space is limited. Precision-engineered for a perfect fit, they deliver the durability and strength needed for aftermarket modifications.

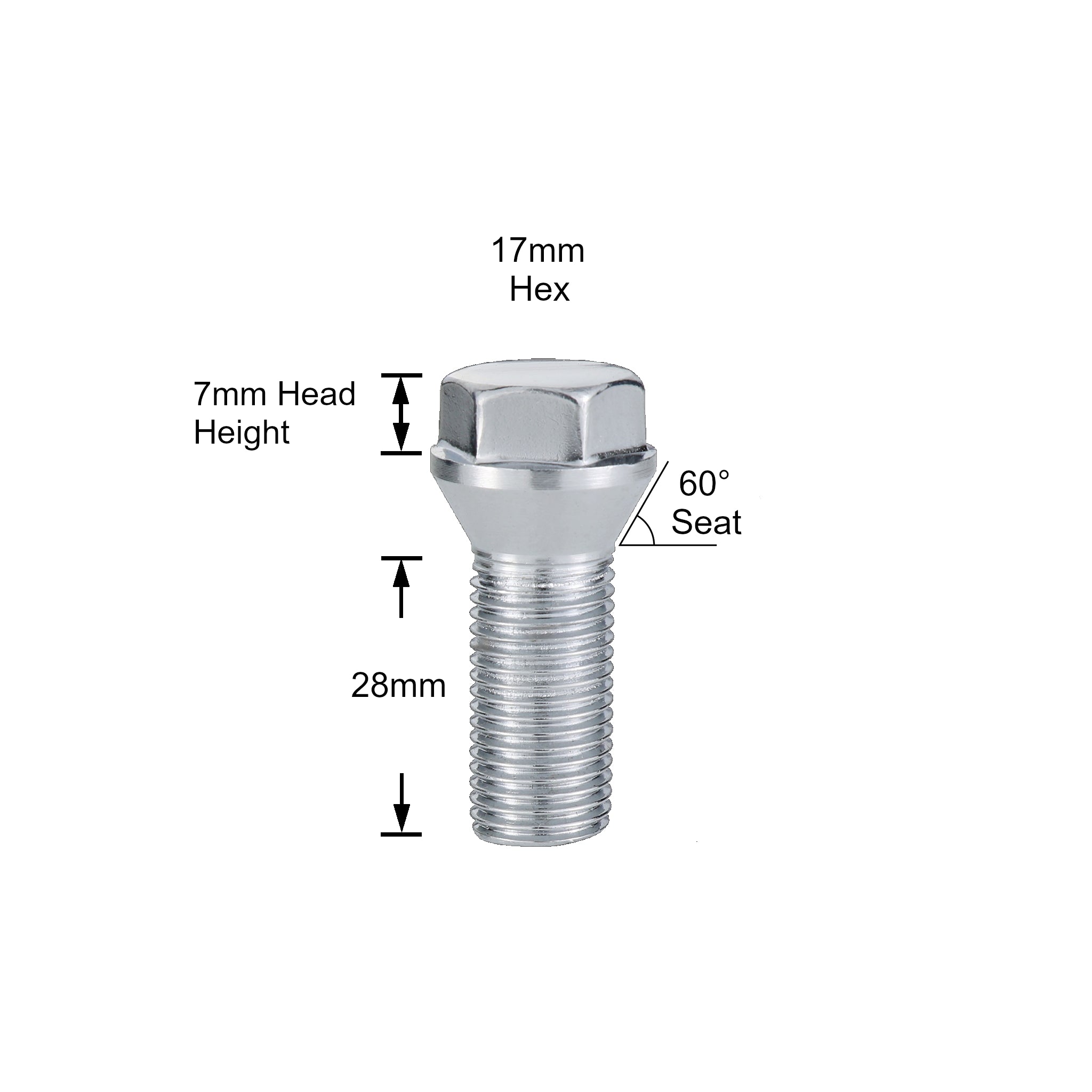

Specifications:

Material: Steel

Thread Size: M14X1.5

Head Height: 7mm

Head type: 17mm Hex

Seat Type: 60 degree tapered/conical seat

Stud Grade: 10.9

Shank Length: 28mm

Quantity: 1 Wheel Bolt

If you are unsure or have any queries, you can contact us or refer to our wheel fitment guide. The information provided serves as a general guide. Images used are for reference only and is affected by the selected size. You should verify your wheel size, stud pattern (p.c.d.), wheel nut thread pitch, and/or centre bore of your specific vehicle, as it may differ within vehicle makes. All wheels and wheel accessories should be installed professionally by qualified individual or shop for safe vehicle operation.
